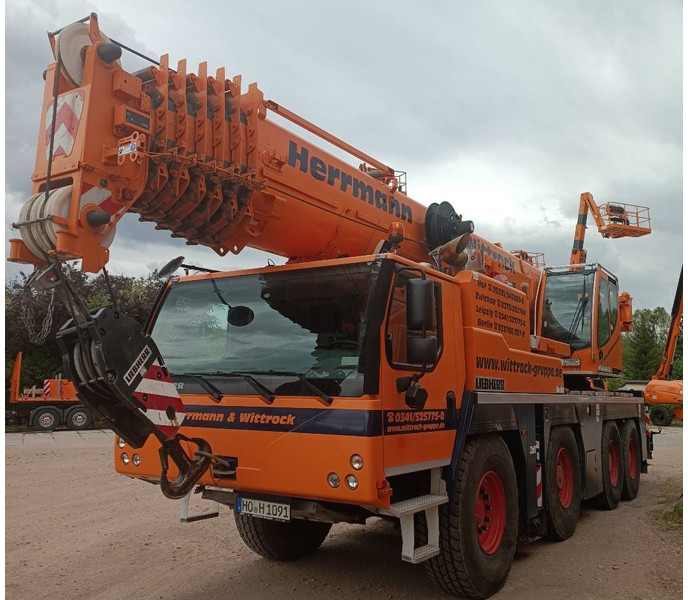

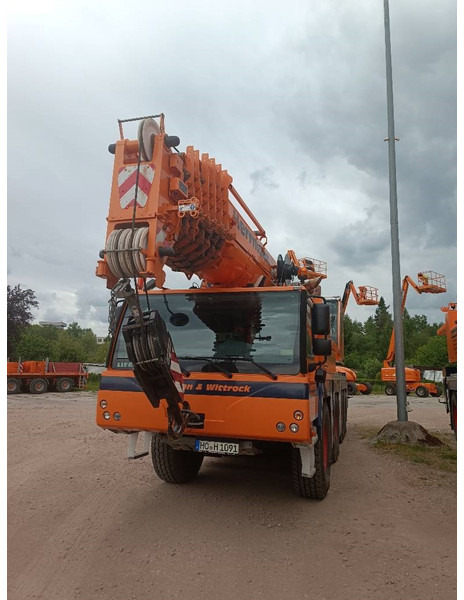

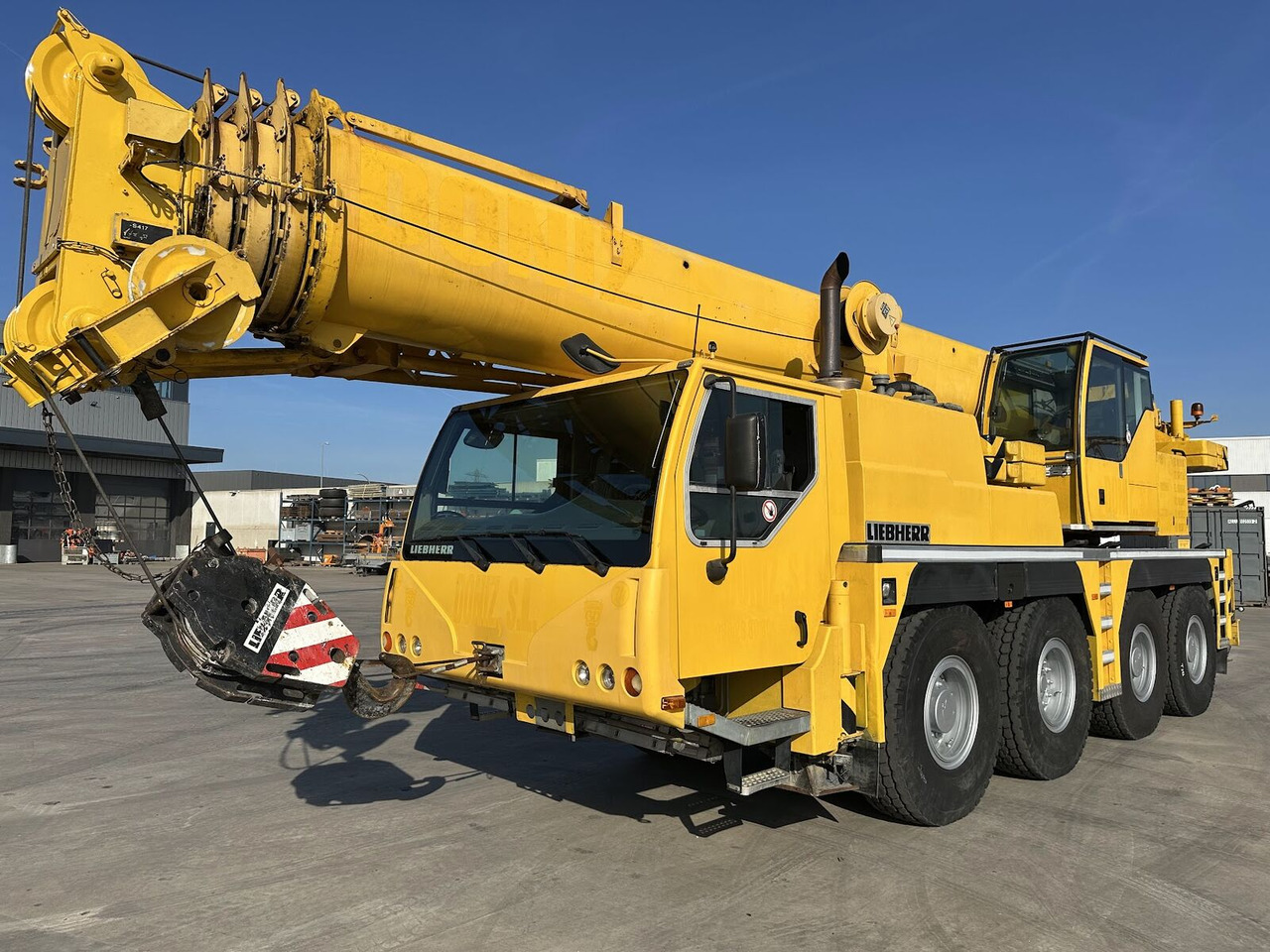

All terrain crane Liebherr LTM 1090-4.2

Main Data:

Model / Type of crane LTM 1090-4.2 / AT

Max. capacity (75%) / max. loadmoment (tm) 90 t at 3 m / 258 tm

Year / First taken into operation 2019 / 24.10.2019

Working hours chasis (h) / date 1485 h / 14.02.2023

Working hours superstructure (h) / date 3268 h / 14.02.2023

Mileage (km) / date 35007 km / 14.02.2023

Data Chassis:

Truck chassis type / Width A43B / 2,55 m

Carrier cabin wide

Aircondition existing / available

Engine (make/type) / hp / kW Liebherr D 946 A7-04 / 449 / 330

Engine exhaust-stage IV

Gearbox manufacturer / Type ZF / SG / Traxon

Crane driveable from above + below

Drive and steering 8 x 6 x 8 / 1/2/3/4.

Type of axle suspension Niveaumatic

Size of wheels 16.00 R 25

Sparewheel 0

Controlled from support Bluetooth, above

variable supporting base VarioBase

Support basis L/B 7,46 x 7,30 m

Trailer coupling D 19

Tackle box underneath counterweight storage existing / available

TÜV / SP-acceptance validity 10.23 / 04.23

Data Superstructure:

Telescopic boom / boom sections 11,4 - 60 m / 7

Swing-away jib / Adapter 9,5 - 16 m / 0/20/40°

No. of winches 1

Winch 1 cable pull / cable Ø 63 kN / 17 mm

Hookblocks / Crane hook (t) 6,3 t / 42,3 t (DH)

Counterweight (t) 8,8 t / 13,7 t

Working area limitation existing / available

Emergency operation of crane hydraulic available / existing

Wind speed indicator existing / available

Two working floodlights at pivot section electrically adjustable existing / available

Aircondition existing / available

Additional heating existing / available

Safe load indicator Liebherr LICCON 2 / 75 %

UVV-acceptance validity 10.22

Other features:

immobilizer; rear view camera at carrier rear

Subject to change.

Subject to prior sale.

Complete data sheet on request.
