STENZ FEEDER leasing

Published: 12d

STENZ FEEDER leasing STENZ FEEDER: picture 2

STENZ FEEDER leasing STENZ FEEDER: picture 3

STENZ FEEDER leasing STENZ FEEDER: picture 4

STENZ FEEDER leasing STENZ FEEDER: picture 5

STENZ FEEDER leasing STENZ FEEDER: picture 6

STENZ FEEDER leasing STENZ FEEDER: picture 7

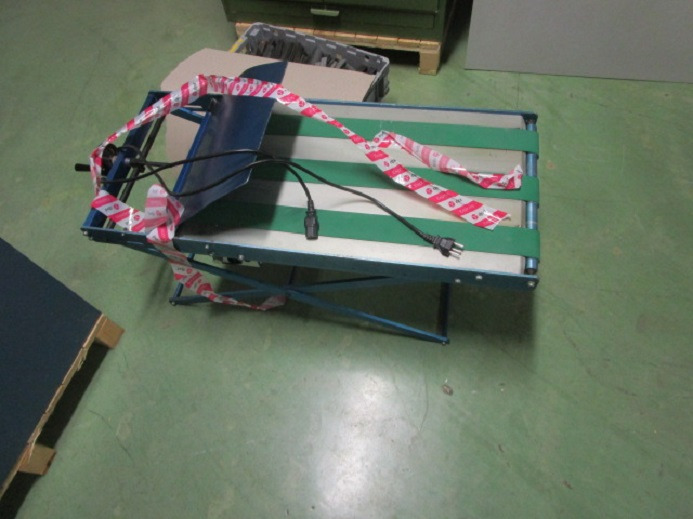

STENZ FEEDER leasing STENZ FEEDER: picture 8

STENZ FEEDER leasing STENZ FEEDER: picture 9

Published: 12d

Reference number

40018.25

Condition

good

Location

Switzerland, Bahnhofstr. 83c 9240 Uzwil, Switzerland

More information

Origin: Switzerland

Condition: very good condition

Available: immediately

Return belts:

● For 10.5 cm x 14.8 cm envelopes & portrait orientation, the straps should be pushed to the middle conveyor belt.

● Rule: for large envelopes, push the straps out, for small envelopes press the straps (22) inwards.

CONNECTION TO PRINTING MACHINE:

● The STENZ FEEDER does not need synchronization. The feeder is guided by the handles the pressure machine and sets the required height with the crank. Important: only when the printing height is set, fix the rear rollers and check the stability. Turn on the machine & start printing. For single sheet feeder printing machines (GTO) adjustable inclination. Efficient printing of envelopes can now begin.

Designed for heavy-duty use at maximum printing speeds

● Compatible with all 36 x 52 print machines irrespective of the feed system (overlapped/single-sheet feed). – Requires no mechanical alterations to the printing machine – No need for synchronization adjustments as controlled by laser technology – Very short set-up time allows economic use from 1000 envelops upwards – Easy to operate – The design of the feeder results in a forced overlap. The Stenz Feeder is thus not restricted in throughput – A minimum of wearing parts for extremely long service life – Already approved in thousands of different print machines – A Swiss quality product – Designed by printers for printers.

Specifications:

● Speed: Limited by print machine

● Length: 115 cm

● Width: 50 cm

● Height: adjustable between

● Max. format size: 36.5 x 35 cm

● Max. pass-through width: 36.5 cm

● Electrical: 230 V, 50 Hz

Equipment:

● WITH DELIVERY BELT
